Galvanised Roof Hatch Access Cat Ladder
Galvanised Fixed Vertical Access Cat Ladders with Hoops for Hatch access in kit form.
Flexible, easy-to-install and manufactured to EN 14122-4, our modular fixed ladder system offers an unrivalled number of design options.

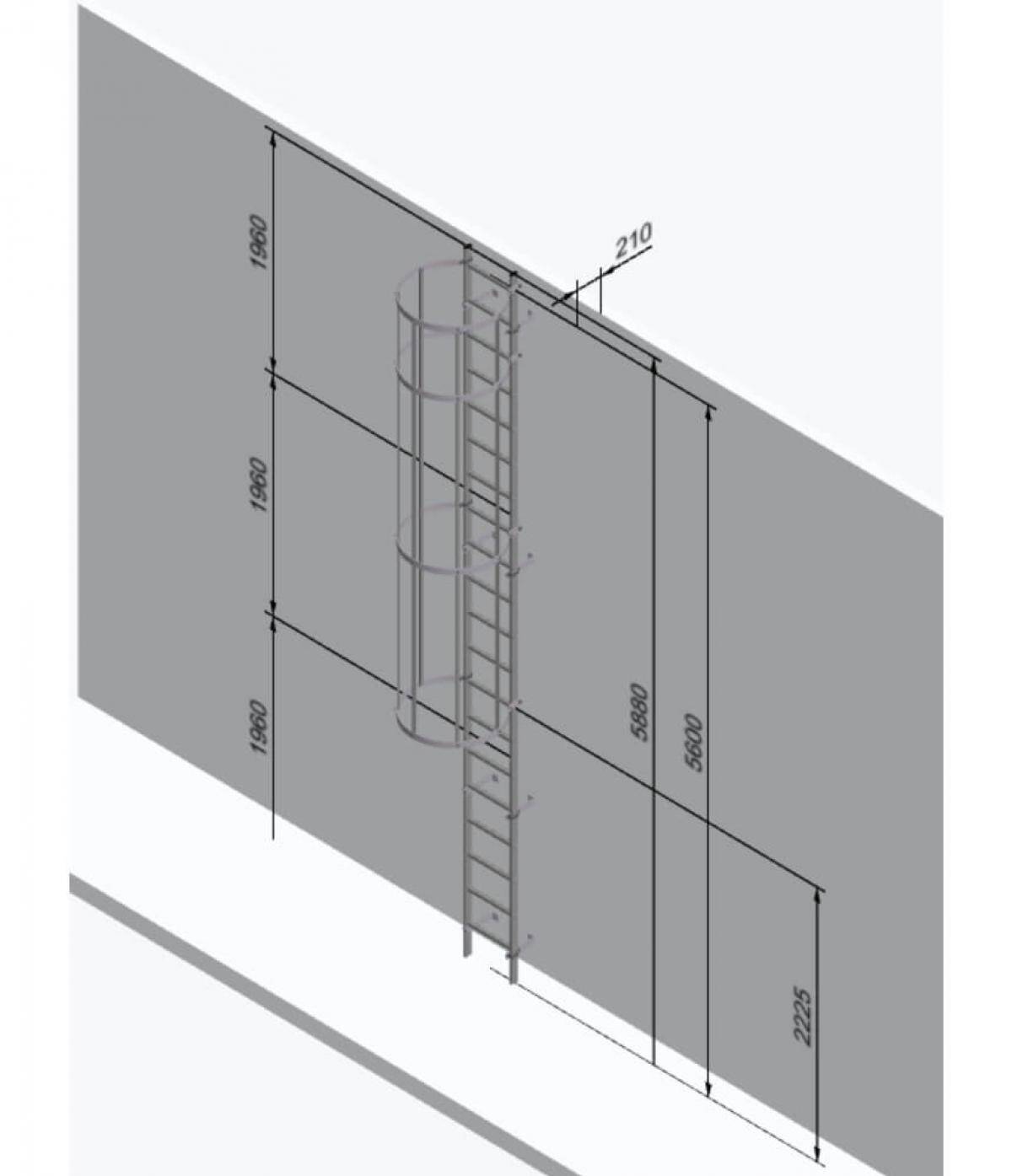

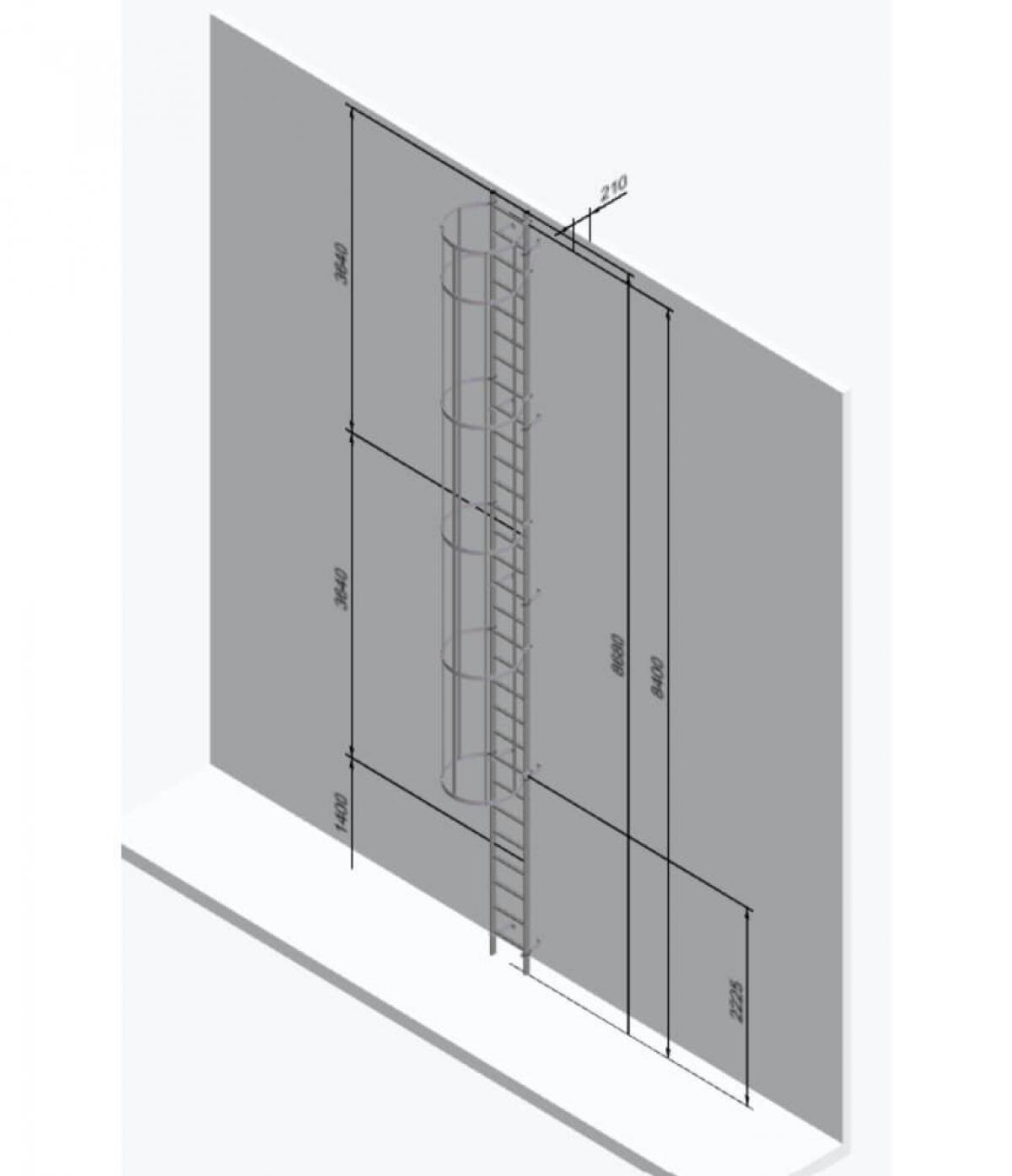

Available in a number of preset kits of varying heights for ease of ordering. Just pick the size nearest the size you need and cut the ladder down to the exact requirement.
The kits come with all the parts needed, if you require any additional features or modifications please contact us.

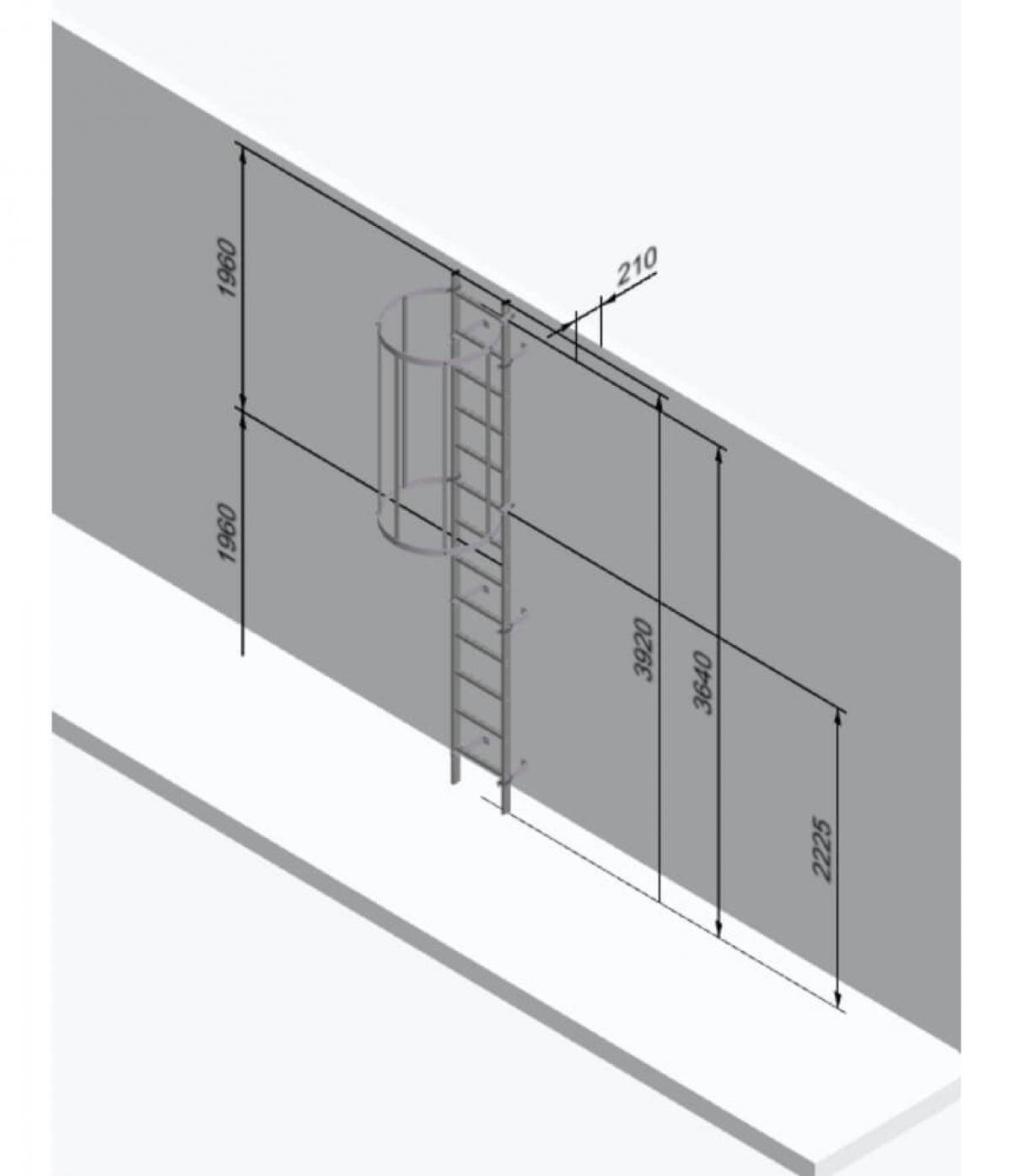

Typical 3640mm kit contains - 6 x standard wall brackets, 2 x safety cage hoops, 3 x safety cage straps, 1 x 3640mm ladder section.
Specification:
Brackets -200mm standoff
Cage - 724mm diameter - Min height 2200mm – Max height 3000mm
Crossover - 750mm clear length - 687mm return ladder length
Rung Depth - 30mm
Ladder External Width - 520mm
Rung Spacing - 280mm
