Hercules Lorry Access Steps

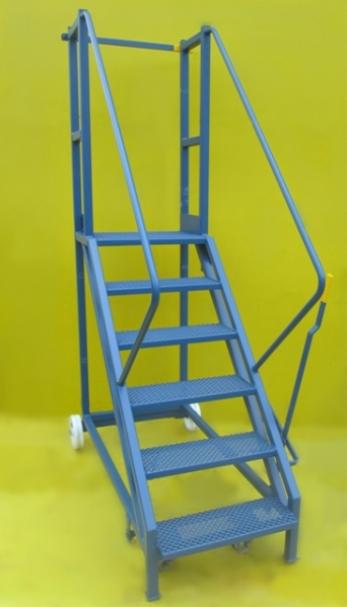

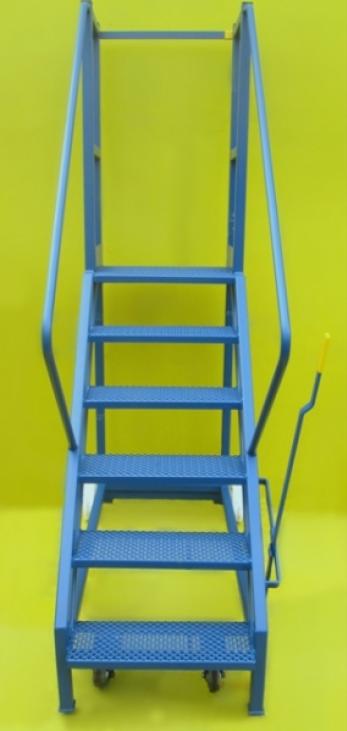

The Hercules mobile access step has been designed with rough use in mind. When mobile steps are used in lorry parks and in a loading bay environment, they are liable to constant use and often moved and knocked with forklifts. We have made our heavy duty access ladder from a substantial 40x40x3mm box section and, like all our mobile step range, are a fully welded one piece construction.

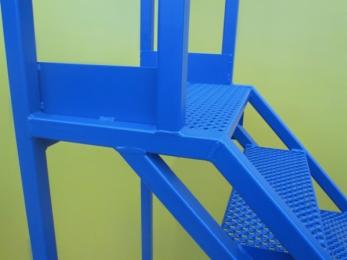

The angle of the steps is 45 degrees, an easy slope step, which allows the user to walk down forward facing. The treads are our hi-grip steel treads offering excellent grip in in wet oily conditions.

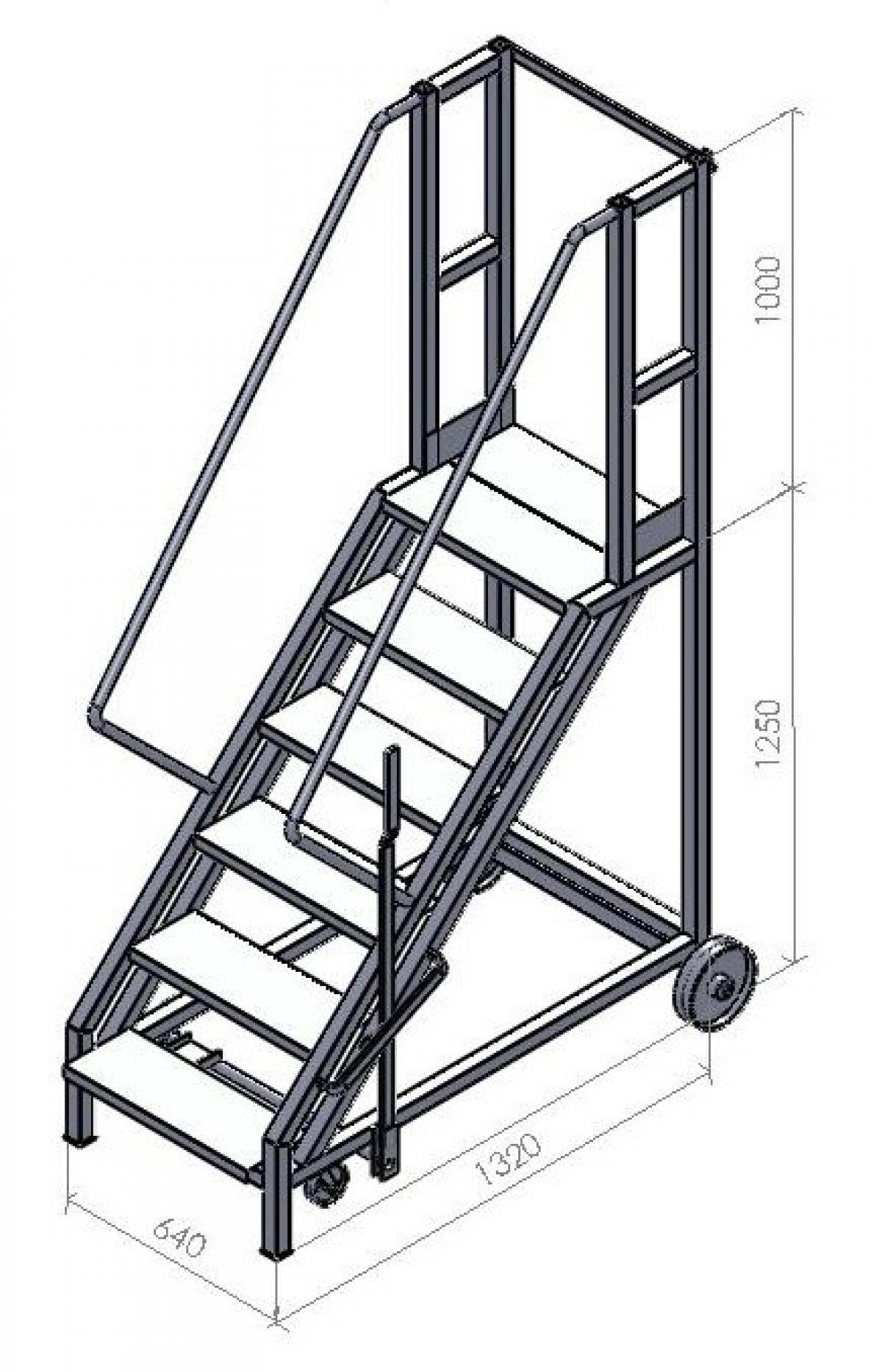

This 6 step mobile ladder has a platform height of 1250mm and is fitted with 2 substantial 200mm nylon wheels and 2 smaller 100mm diameter wheels housed in swivel castors allowing easy movement. On the side of the steps is mounted a brake lever which disengages the smaller wheels when in use allowing a safe stable platform for the steps. Also fitted is a swing access bar at the top and safety notice on the side.
Platform Height From Ground: 1250mm
Steps Overall Length: 1460mm
Steps Overall Height: 2250mm
Steps Frame Width: 640mm
Overall Axle Width: 800mm

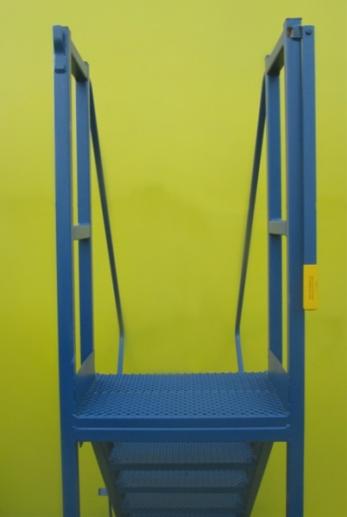

Platform Size: 550mm x 380mm
Internal Step Tread Width: 550mm x 200mm
Step Tread Vertical Spacing: 250mm
Load Capacity: 300kg
12 month
