Original Aluminium Loft Ladder Warehouse Ladder

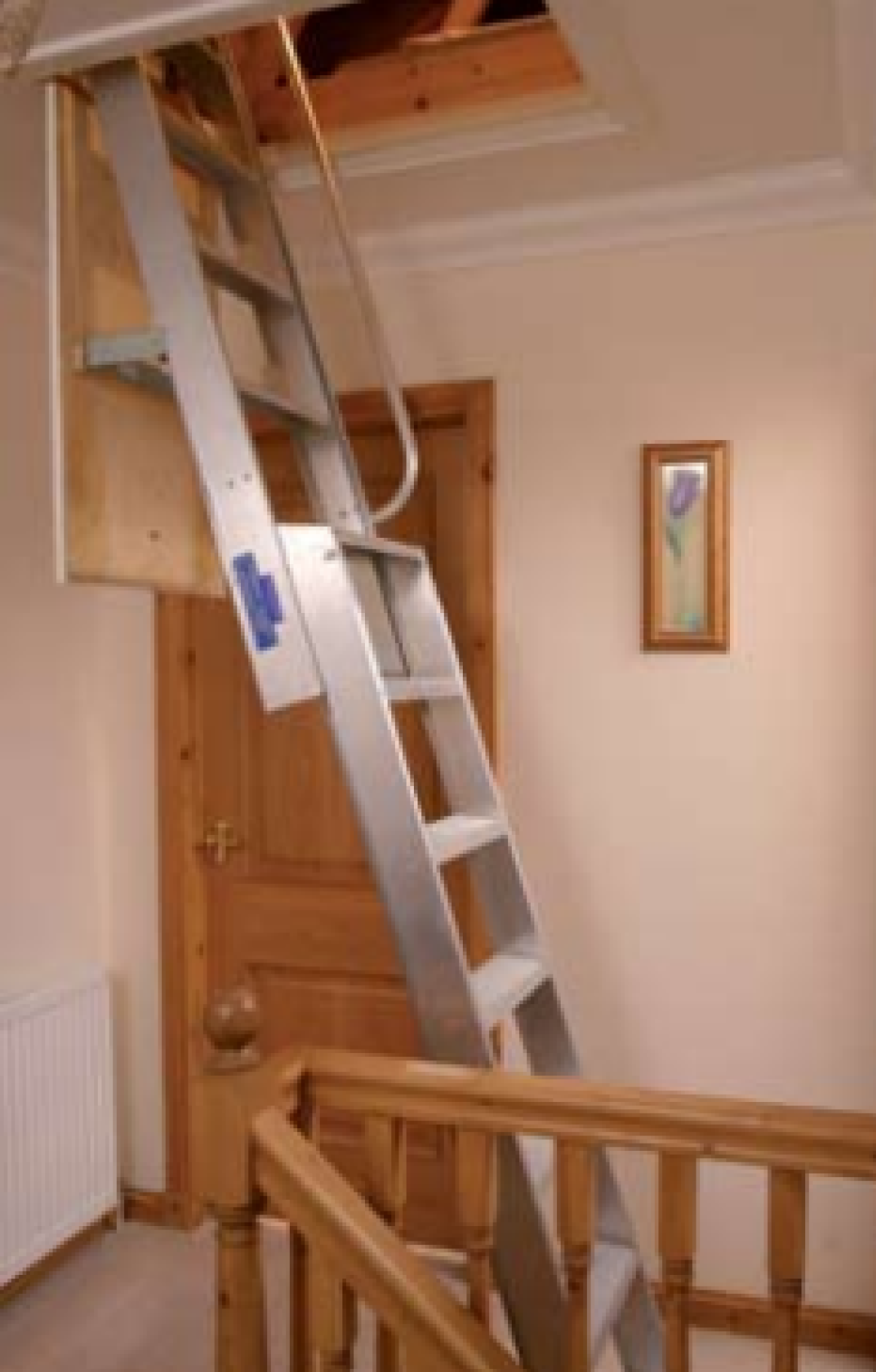

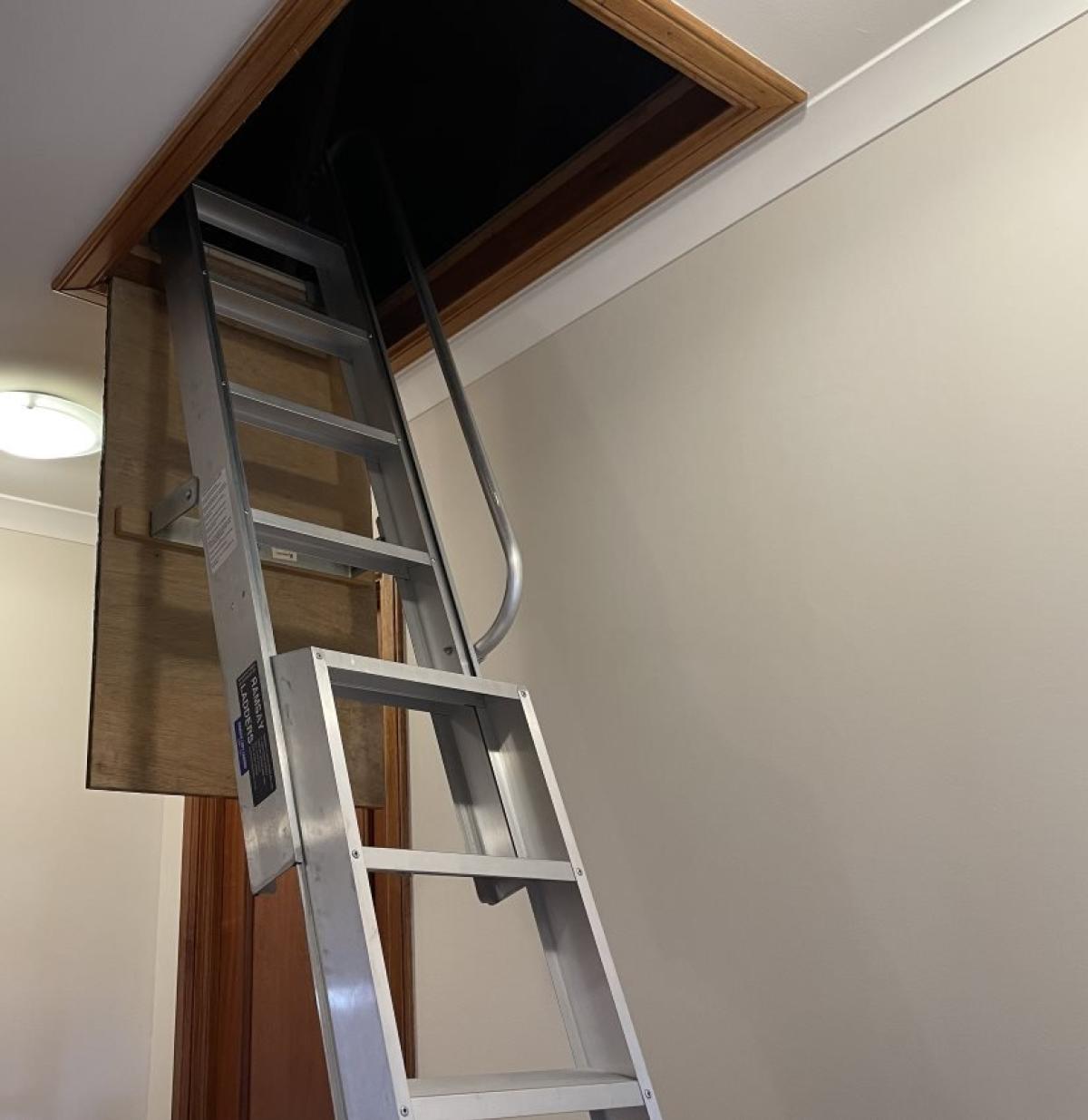

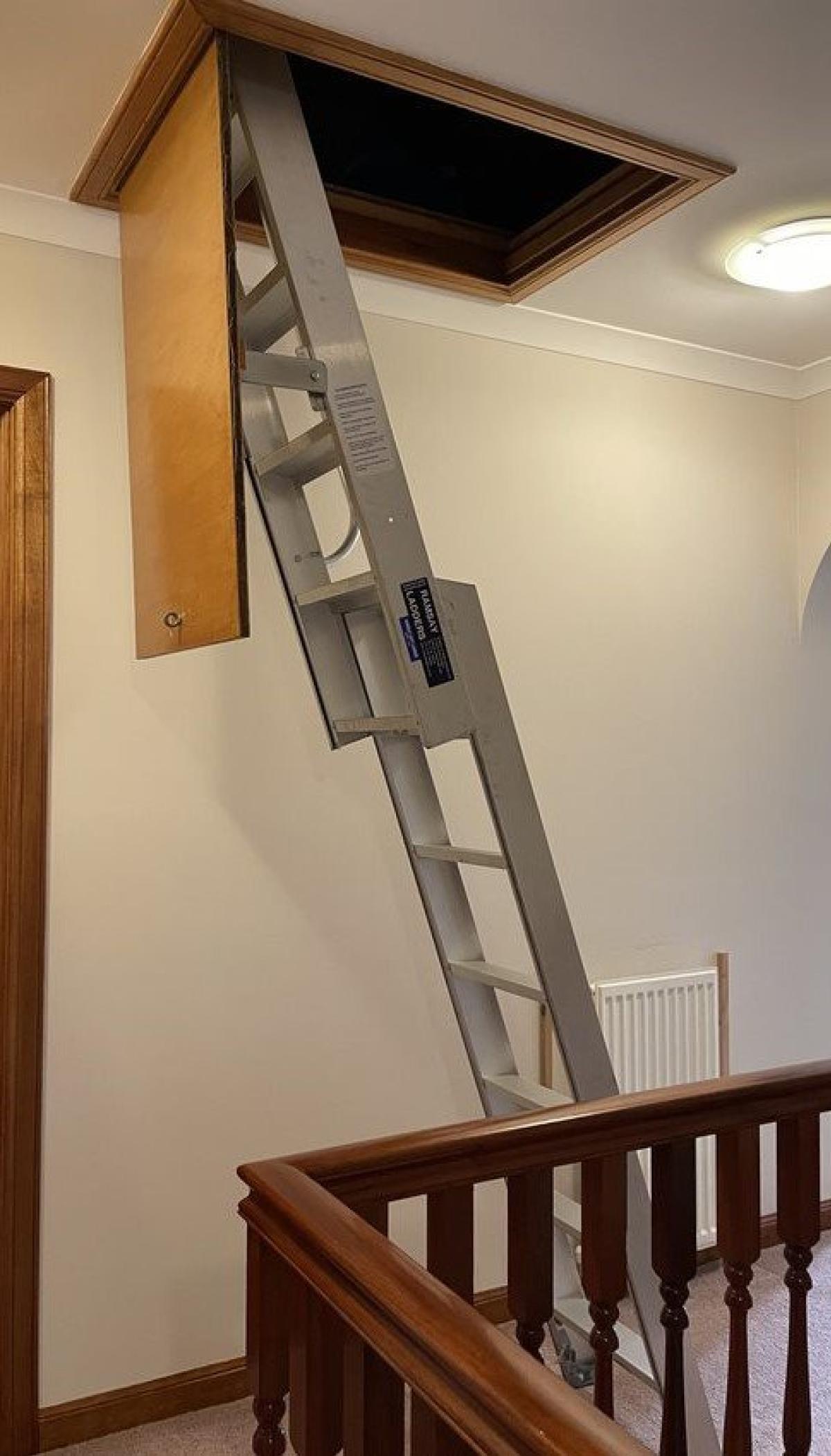

Original Aluminium Loft Ladder

This is a robust, higher specification loft ladder manufactured from quality aluminum extrusions, which makes it very suitable for domestic and commercial use.

Treads are 400mm wide x 90mm deep with a serrated top. The ladder comes complete with operating pole, handrail and all fittings required to install the ladder correctly.

NOTE: We DO NOT supply the trapdoor cover.

Download Specifications

Floor to Floor Height (mts)

Quantity - +

Code	AL1
Floor to Floor Height (mts)	up to 2.54mts (8'4")
Storage Length Required	1.37mts (4' 6")
Height Above Loft Floor Required	889mm (2' 11")
Minimum Hatch Size (LxW)	762mm x 558mm

Code	Floor to Floor Height (mts)	Storage Length Required	Height Above Loft Floor Required	Minimum Hatch Size (LxW)
AL1	up to 2.54mts (8'4")	1.37mts (4' 6")	889mm (2' 11")	762mm x 558mm

Code	AL2
Floor to Floor Height (mts)	2.57/2.82mts (8'5"/9'3")
Storage Length Required	1.37mts (4' 6")
Height Above Loft Floor Required	812mm (2' 8")
Minimum Hatch Size (LxW)	762mm x 558mm

Code	Floor to Floor Height (mts)	Storage Length Required	Height Above Loft Floor Required	Minimum Hatch Size (LxW)
AL2	2.57/2.82mts (8'5"/9'3")	1.37mts (4' 6")	812mm (2' 8")	762mm x 558mm

Code	AL3
Floor to Floor Height (mts)	2.84/3.10mts (9'4"/10'2")
Storage Length Required	1.63mts (5 '4")
Height Above Loft Floor Required	990mm (3' 3")
Minimum Hatch Size (LxW)	762mm x 558mm

Code	Floor to Floor Height (mts)	Storage Length Required	Height Above Loft Floor Required	Minimum Hatch Size (LxW)
AL3	2.84/3.10mts (9'4"/10'2")	1.63mts (5 '4")	990mm (3' 3")	762mm x 558mm

Code	AL4
Floor to Floor Height (mts)	3.12/3.38mts (10'3"/11'1")
Storage Length Required	1.63mts (5'4")
Height Above Loft Floor Required	914mm (3'0")
Minimum Hatch Size (LxW)	850mm x 558mm

Code	Floor to Floor Height (mts)	Storage Length Required	Height Above Loft Floor Required	Minimum Hatch Size (LxW)
AL4	3.12/3.38mts (10'3"/11'1")	1.63mts (5'4")	914mm (3'0")	850mm x 558mm

Code	AL5
Floor to Floor Height (mts)	3.40/3.66mts (11'2"/12'0")
Storage Length Required	2.03mts (6'8")
Height Above Loft Floor Required	1.245mts (4'1")
Minimum Hatch Size (LxW)	1016mm x 558mm

Code	Floor to Floor Height (mts)	Storage Length Required	Height Above Loft Floor Required	Minimum Hatch Size (LxW)
AL5	3.40/3.66mts (11'2"/12'0")	2.03mts (6'8")	1.245mts (4'1")	1016mm x 558mm

PRICE FROM £403.10

Prices include VAT and Delivery. Surcharges May Apply.

Add to trolley

specification warranty download

5 SIZES AVAILABLE
TO SUIT FLOOR TO FLOOR HEIGHTS FROM 2.40mt UP TO 3.66mt
SPRING BALANCED REAR BRACKET WITH CORNER AND HATCH BRACKET
TREADS 385mm WIDE x 90mm DEEP
SUPPLIED WITH ONE HANDRAIL AS STANDARD
COMPLETE WITH OPERATING POLE AND FIXING SCREWS, LOFT HATCH EYE BOLT.
150KG RATING
